Test and Measurement Solutions

Global expertise serving Algerian networks.

Alsyncom delivers excellence in instrumentation. From high-precision PTP synchronization to Ethernet analysis, discover robust and intuitive test solutions designed to address the critical challenges facing the telecommunications and energy sectors in Algeria.

Synchronization Monitoring and Auditing Tool

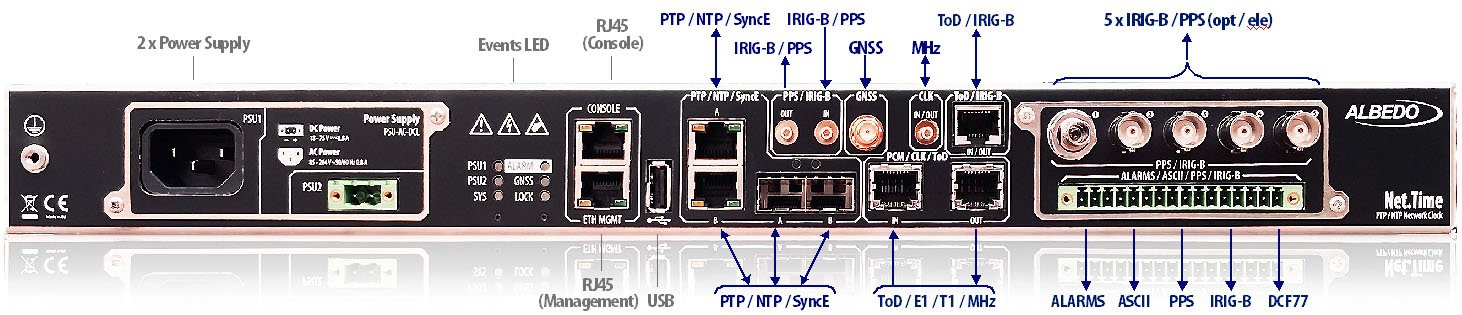

ALBEDO - NET.Time φ

Net.Time φ (Phi) is a PTP/NTP over PRP clock designed to facilitate the integration of conventional substations based on GPS and IRIG-B with the new IEC 61850 standards by offering all kind of interconnection facilities.
The Net.Time PHI is a grandmaster and time switch designed to synchronize power systems and telecommunications applications. It supports PTP and NTP protocols via PRP and is capable of managing both legacy and modern devices.The system accepts multiple time references, making it flexible and resilient to disruptions.The Net.Time PHI is used in power substations, phasor measurement systems, and SCADA applications, ensuring precise management of data and events.

Datasheet

Conventional Substations.
IEC-61850 Substations.
Railways infrastructures.
Synchrophasors.
Differential Teleprotection.
Virtual Power Utilities.

Double Port1Gb/s, 100Mb/s,10Mb/s.
Optical / electrical interfaces.
65ºC Fanless Operation.
Full support of PTP, NTP, ToD, IRIG-B, DCF77, n x MHz, n x PPS, T1, E1.
512 PTP unicast clients.
22 simultaneous outputs.
9 time references.
5 timing modules.
Rubidium / OCXO oscillator.
PTP / NTP over PRP.
Simultaneous PTP and NTP.
Native PRP support.
